Collapsible Operable Acoustic Partition Wall For Auditorium Sound Insulation
Movable partition walls offer a versatile solution for flexible space management, allowing rooms to be easily adjusted in size to meet various needs. Whether it's for conference rooms, school classrooms, or large exhibition halls, these partitions can be customized with single or double inset pass doors, glazing panels, and a wide range of track configurations and surface finishes. Melamine is a popular choice for its durability and aesthetic appeal.
These partitions are also available in fire-resistant options, offering 30 or 60 minutes of protection. Choose between manual or semi-automatic operation to suit your convenience.
Operation
Our movable partition walls feature continuously hinged panels that effortlessly slide from their parked position to create a closed or extended wall. To open or fold the wall, simply push the panels back to their parked position. For precise alignment, the system uses a pneumatic gas piston in the top track to ensure a smooth, flat finish.
Each lead panel is equipped with a lever or recessed handle, and a vertical rebated profile to function as a pass door. This door option is available with or without a lock cylinder, providing flexibility to meet your security needs.
Roller Option & Feature
1. Dupont POM roller
2. 304 stainless steel heavy duty roller with safety device & CNC machining
3. Unique and patented wheel surface and shape make the whole movable partition easy to use
Panel Option & Feature
1. Thickness: 68mm & 89mm & 105mm
2. Wide variety of acoustical and decorative finishes available
3. 6061-T6 profile and inside Q235 steel frame for superior durability
4 Top & bottom jack lifting mechanism seal are with power of 800N. Magnetic seal in concave & convex profile has magnetic attraction of 40N/m.
SPECIFICATION:
| GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSONAL SPACE SOLUTIONS |
| | Dimensions in mm* | Design |
| Series | Element thickness | Element width* (min./max.) | Clear height* (min./max.) | Framed construction | Panel fixing | Element interconnection/design of
the vertical profiles |
| AE65 | 68 | 600/1,250 | 2,000/4,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE85 | 89 | 600/1,250 | 2,000/5,500 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
| AE100 | 105 | 600/1,250 | 2,000/18,000 | Aluminium-steel | Freely oscillating | Aluminium profile
with magnetic strip
and sealing lips |
Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element
widths indicated can only be confirmed following consultation with the Design Department.
** Depending on the sound insulation/weight |
Product Tags:
|
|

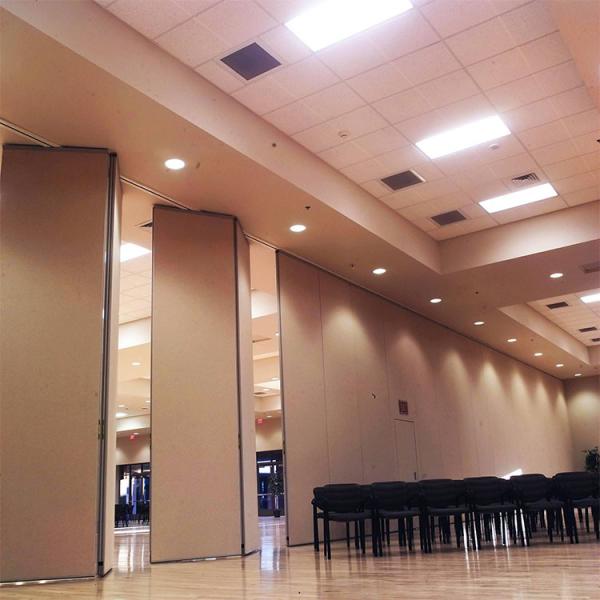

Collapsible Operable Acoustic Partition Wall For Auditorium Sound Insulation Images
|
